list for subscription (continuation): This is the continuation of the list of data sheets which you can subscribe at a very low cost. Sorry, at the moment the subscription is not available. |
|
|
With this file you can obtain the minimum necessary projections for connections from 1 to 24 inches. We should enter the nominal diameter, the rating of the flange and thickness of insulation (if any) and the pad thickness. The projection corresponding to connections WN and SO are shown . |
|
With this file we can obtain the approximate weights of WN oppenings in vessels. We should enter the rating and the diameter of the oppening whose weights we want to know The weights of oppenings can be obtained with and without blind flange. |
|
With this file we can obtain the flow of water through a hole made in a pipe that is exposed to the atmosphere. Entering the internal diameter of the pipe and the diameter of the hole will be shown a chart of height Vs flow of water, according to the required scale. |
|
With this file we can obtain the flow of water through a pipe open to the atmosphere. Entering the diameter of the pipe, it will show us the flow of water in function of the longitude reached by the spout of water in the point where the height of the same one is equal to 1 ft. |
|
This file gives us the chart of flow of water in function of the loss of pressure through a tube venturi. We should enter the diameter of the pipe, the diameter of the venturi throat and the required differential for the scale of pressure droop. |
|
With this file we can obtain the approximate dimensions, according to catalogs of the main manufacturers, of different types of valves. The rating and the diameter of the valve whose dimension requires should enter. |
|

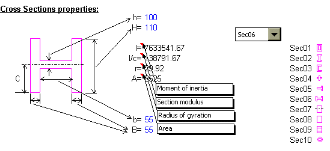

With this spreadsheet we can obtain the properties (moment of inertia, section modulus, radius of gyration and area) of various cross sections. |
|
With this spreadsheet we can obtain the dimensions of several B16.9 Fittings (Straight Cross, Straight Tee, Reducing Tee, etc.) |
